In the area of industrial and electrical engineering, maintaining the integrity and longevity of components is paramount. One method that has proven effective over the years is the use of dip varnish. But what exactly is dip varnish, and why is it so critical in these fields?

Dip varnish is a type of insulating varnish applied to various components through a process known as dipping. This method involves submerging an object into a varnish solution, allowing it to coat the surface evenly. Once dipped, the component is typically dried and cured to ensure a robust, protective layer.

The Dip Coating Process

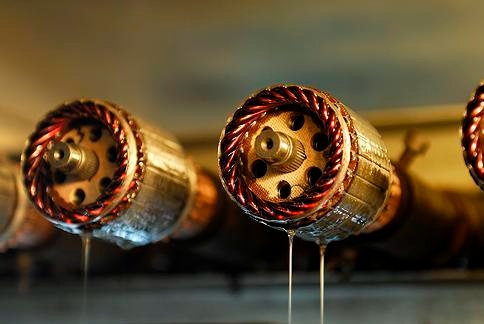

Dip coating is a straightforward yet highly effective process. Components are submerged in a dip varnish solution, ensuring complete coverage. This technique is especially useful for objects with complex geometries where uniform coating is crucial. After dipping, the parts are removed, and the excess varnish is allowed to drain off. The final step involves curing the varnish through heat or air drying, depending on the varnish type.

Applications of Dip Varnish

1. Dip Insulating Varnish: This isparticularly vital in electrical engineering. Dip insulating varnishprovides a protective layer that enhances the dielectric strength ofcomponents, such as motor coils and windings. This insulation preventselectrical shorts and extends the lifespan of the equipment.

2. Dip Impregnation: In this process,varnish penetrates deep into the windings and cores of electricalcomponents. Dip impregnation ensures that even the innermost parts arecoated, offering superior protection against moisture, chemicals, andother environmental factors.

3. Motor Coil Dip: Motor coils areoften subjected to high temperatures and stresses. Dip varnishing thesecoils improves their thermal conductivity and mechanical stability,ensuring they perform optimally under various conditions.

4. Motor Winding Insulation: Properinsulation of motor windings is critical to prevent electrical failures.Dip varnish forms a durable barrier around the windings, reducing the riskof short circuits and improving overall motor efficiency.

Benefits of Varnish Dipping

 ● Uniform Coating: Dip varnishingensures a consistent layer of protection, which is especially importantfor components with intricate shapes.

 ● Enhanced Durability: The varnishlayer shields components from environmental damage, including moisture,chemicals, and physical abrasion.

 ● Improved Electrical Insulation: Forelectrical components, dip varnish provides excellent insulatingproperties, enhancing performance and safety.

 ● Cost-Effectiveness: The dip coatingprocess is efficient and cost-effective, making it suitable forlarge-scale applications.

Other Related Processes

 ●  Dip Molding: Although not the sameas dip varnishing, dip molding is another process where components areformed by dipping a mold into a liquid material. This technique is oftenused to create handles, grips, and other products requiring a thick,molded layer.

 ●  Dip Sealer: Similar to dip varnish,dip sealers are used to provide a protective seal over components. Thesesealers can prevent corrosion and environmental damage, ensuring thelongevity of the parts.

Conclusion

Dip varnish is a versatile and essential tool in various industrial and electrical applications. Whether for insulating motor windings, protecting against environmental damage, or ensuring uniform coating on complex components, the dip varnishing process is invaluable. By understanding and utilizing this method, industries can significantly enhance the performance and durability of their products, ensuring they stand the test of time. As a professional dip varnish manufacturer and electrical insulating solutions provider, we would be pleased to advise you individually, and you are also welcome to send your inquiry to eason@jxrt.com.
